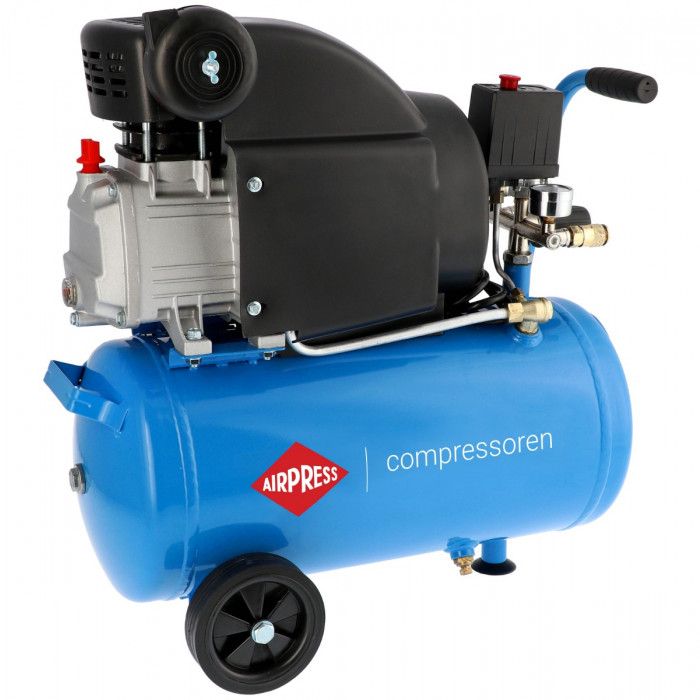

Compressor HL 310-25 8 bar 2 hp 137 l/min 24 l
Out of stock
SKU
36839-1
| Motor power (hp / kW) | 2.0 HP / 1.5 kW |
|---|---|
| Capacity air receiver (l) | 24 |
| Maximum pressure (bar) | 8 |
| Intake capacity (l/min) | 196 L/min3.267 L/s |
| Free air delivery (l/min)* | 157 L/min2.617 L/s |
| Noise level dB (A) (0 m) | 96 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 8712418203035 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 26 kg |
| Gross weight (kg) | 25.5 kg |
| Length (mm) | 600 mm6 dm |
| Width (mm) | 330 mm3.3 dm |
| Height (mm) | 560 mm5.6 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 2.0 HP / 1.5 kW |
| Cylinders | 1 |
| Stages | 1 |
| Pump speed (rpm) | 2850 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 24 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 8 |
| Minimum working pressure (bar) | 6 bar |
| Intake capacity (l/min) | 196 L/min3.267 L/s |
|---|---|
| Free air delivery (l/min)* | 157 L/min2.617 L/s |
| Free air delivery (m3/h)* | 9.42 m³/h2.617 dm³/s |
| Noise level dB (A) (0 m) | 96 |
| Noise level dB(A) (4 m) | 76 |
| Noise level dB(A) (7 m) | 71 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/4 |
| Number of couplings air connections | 2 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
| SKU | 36839-1 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
