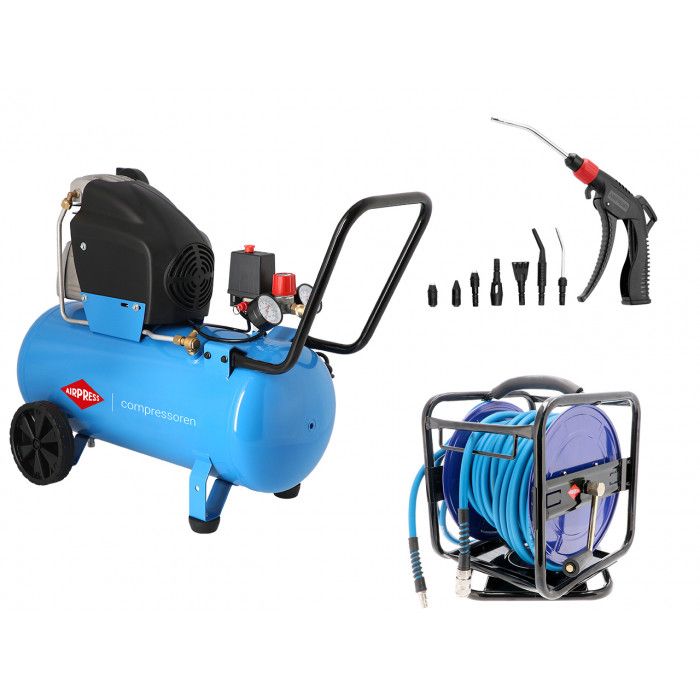

Compressor HL 360-50 10 bar 2.5 hp/1.8 kW 288 l/min 50 l Plug & Play
€441.01
Incl. Tax:
€441.01
Incl. Tax:
Incl. Tax:
Out of stock
SKU
360848-46573-45029
Product details
| SKU | 360848-46573-45029 |
|---|---|
| EAN 13 | 8712418033458 |
| Weight (netto) (kg) | 33 kg |
| Length (mm) | 700 mm7 dm |
| Width (mm) | 310 mm3.1 dm |
| Height (mm) | 640 mm6.4 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 2.5 HP / 1.8 kW |
| Cylinders | 1 |
| Stages | 1 |
| Pump speed (rpm) | 2800 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 50 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
| Intake capacity (l/min) | 360 L/m2.16 kL/s |
|---|---|
| Free air delivery (l/min) | 288 L/m1.728 kL/s |
| Free air delivery (m3/h) | 17.28 m³/h4.8 dm³/s |
| Noise level dB (A) (0 m) | 96 |
| Noise level dB(A) (4 m) | 76 |
| Noise level dB(A) (7 m) | 71 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/4 |
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
