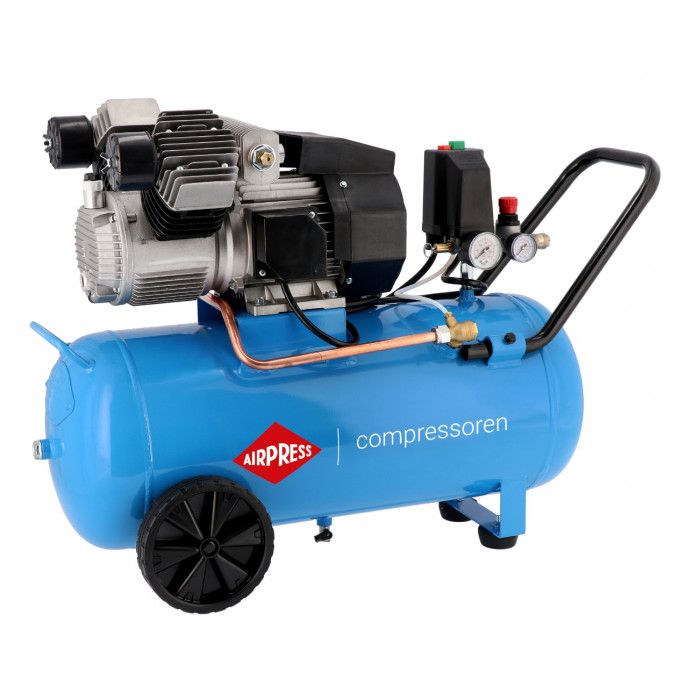

Compressor KM 50-350 10 bar 2.5 hp 280 l/min 50 l
€1,019.52
Incl. Tax:
€1,019.52
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36511-N
Product details
| SKU | 36511-N |
|---|---|
| EAN 13 | 8712418305029 |
| Weight (netto) (kg) | 65 kg |
| Length (mm) | 900 mm9 dm |
| Width (mm) | 370 mm3.7 dm |
| Height (mm) | 700 mm7 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 2.5 HP / 1.8 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1400 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 50 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 350 L/m2.1 kL/s |
| Free air delivery (l/min) | 280 L/m1.68 kL/s |
| Free air delivery (m3/h) | 16.8 m³/h4.667 dm³/s |
| Noise level dB (A) (0 m) | 92 |
| Noise level dB(A) (4 m) | 72 |
| Noise level dB(A) (7 m) | 67 |
| Sound volume reduction | No |
| Connection type | Universal |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
