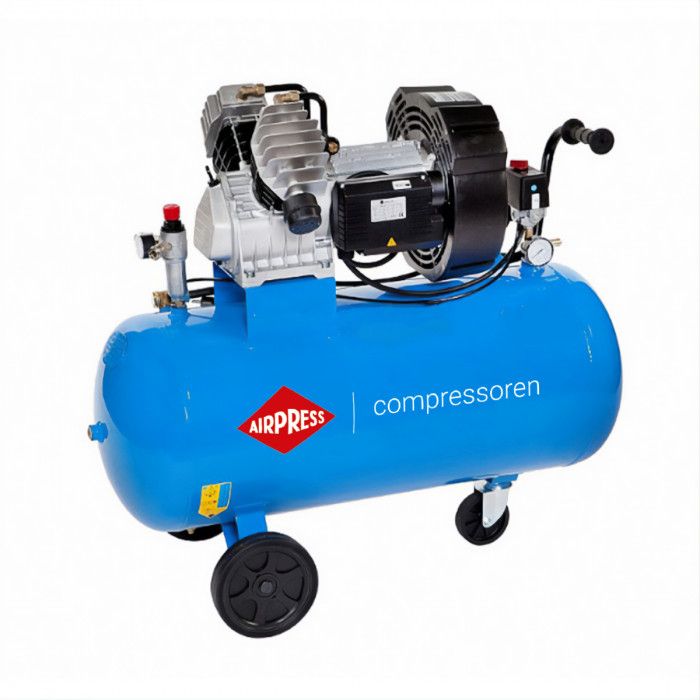

Compressor LM 100-410 10 bar 3 hp 100 l 350 l/min
€1,056.10
Incl. Tax:
€1,056.10
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36608
Product details
| SKU | 36608 |
|---|---|
| EAN 13 | 8712418320824 |
| Weight (netto) (kg) | 77 kg |
| Length (mm) | 1,000 mm1 m |
| Width (mm) | 410 mm4.1 dm |
| Height (mm) | 800 mm8 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1400 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 100 |
| Galvanized tank | No |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 410 L/m2.46 kL/s |
| Free air delivery (l/min) | 350 L/m2.1 kL/s |
| Free air delivery (m3/h) | 21 m³/h5.833 dm³/s |
| Noise level dB (A) (0 m) | 93 |
| Noise level dB(A) (4 m) | 73 |
| Noise level dB(A) (7 m) | 68 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | 2 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
