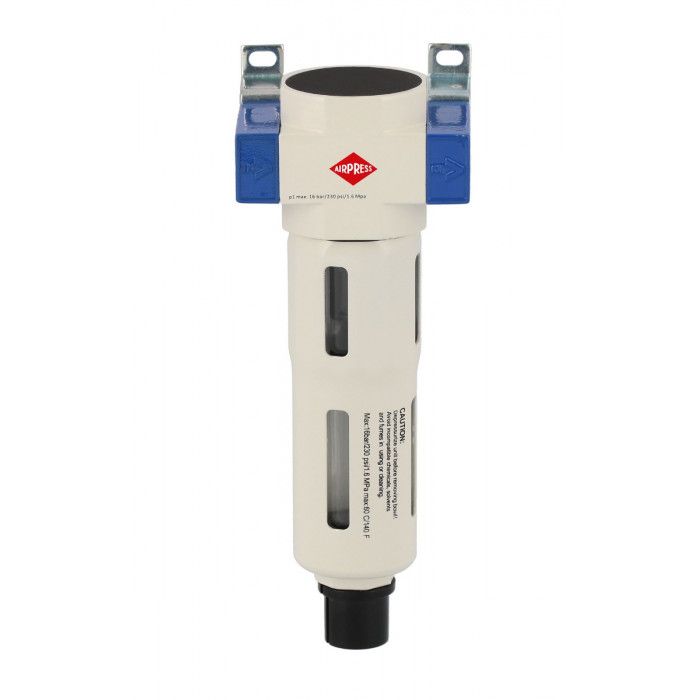

Oil-/Water separator 1/2" 15 bar
€1.18
Incl. Tax:
€1.18
Incl. Tax:
Incl. Tax:
Out of stock
SKU
45200010
Product details
| SKU | 45200010 |
|---|---|
| EAN 13 | 8712418370324 |
| Weight (netto) (kg) | 0.757 kg757 g |
| Gross weight (kg) | 0.815 kg815 g |
| Length (mm) | 95 mm9.5 cm |
| Width (mm) | 225 mm2.25 dm |
| Height (mm) | 60 mm6 cm |
| Housing material | Zinc die-casting |
| Wall mounting | Yes |
| Type condensation drain | Manual |
| Air connection (") | 1/2 |
|---|---|
| Maximum pressure (bar) | 16 |
| Working pressure (bar) | 0 - 15 |
| Minimum ambient temperature (°C) | 0 |
| Maximum ambient temperature (°C) | 60 |
| Air flow at 7 bar (l/min) | 2800 |
| Air flow l/min at 12 bar | 2600 |
| Filtration (µm) | 5 |
| Separates oil | Yes |
| Separates water | Yes |
