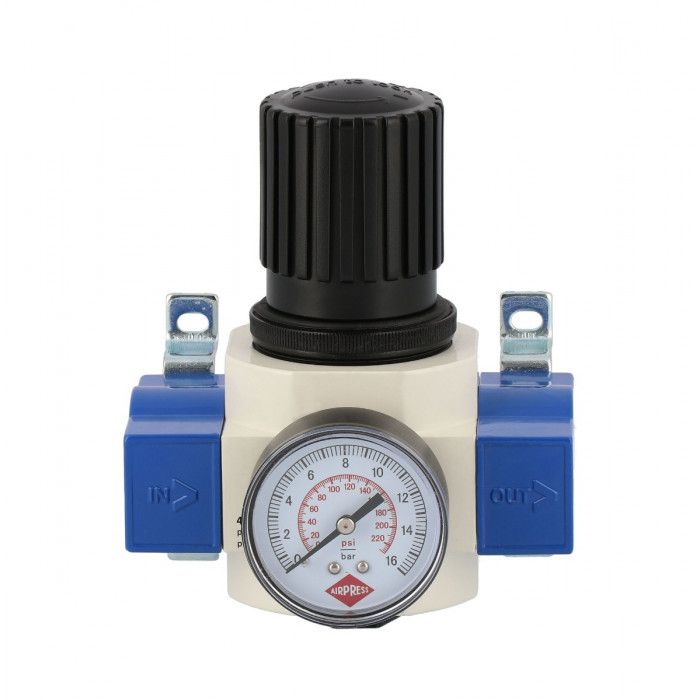

Pressure reducing valve 3/8" 15 bar
Out of stock
SKU
45200007
| EAN 13 | 8712418370294 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 0.38 kg380 g |
| Gross weight (kg) | 0.42 kg420 g |
| Length (mm) | 45 mm4.5 cm |
| Width (mm) | 75 mm7.5 cm |
| Height (mm) | 155 mm1.55 dm |
| Housing material | Zinc die-casting |
| Wall mounting | Yes |
| Air connection (") | 3/8 |
|---|---|
| Maximum pressure (bar) | 16 |
| Working pressure (bar) | 0 - 15 |
| Minimum ambient temperature (°C) | 0 |
| Maximum ambient temperature (°C) | 60 |
| Air flow at 7 bar (l/min) | 1500 |
| Air flow l/min at 12 bar | 1200 |
| SKU | 45200007 |
