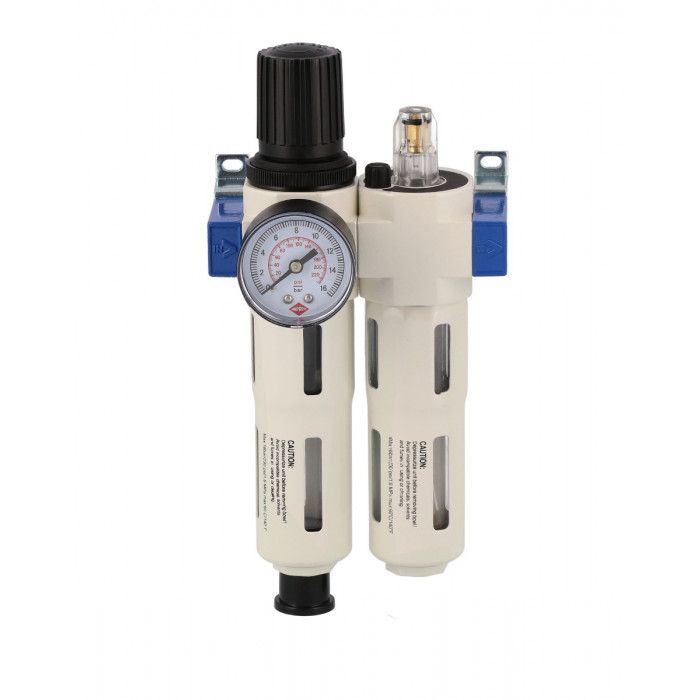

Pressure reducing valve Oil-/Water seperator and Oil Lubricator 3/4" 15 bar
Out of stock
SKU
45200022
| EAN 13 | 8712418370447 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 2.5 kg |
| Length (mm) | 182 mm1.82 dm |
| Width (mm) | 100 mm1 dm |
| Height (mm) | 285 mm2.85 dm |
| Housing material | Zinc die-casting |
| Wall mounting | Yes |
| Type condensation drain | Manual |
| Air connection (") | 3/4 |
| Maximum pressure (bar) | 16 |
|---|---|
| Working pressure (bar) | 0 - 15 |
| Minimum ambient temperature (°C) | 0 |
| Maximum ambient temperature (°C) | 60 |
| Air flow at 7 bar (l/min) | 8500 |
| Air flow l/min at 12 bar | 7000 |
| Filtration (µm) | 5 |
| Separates oil | Yes |
| Separates water | Yes |
| SKU | 45200022 |
