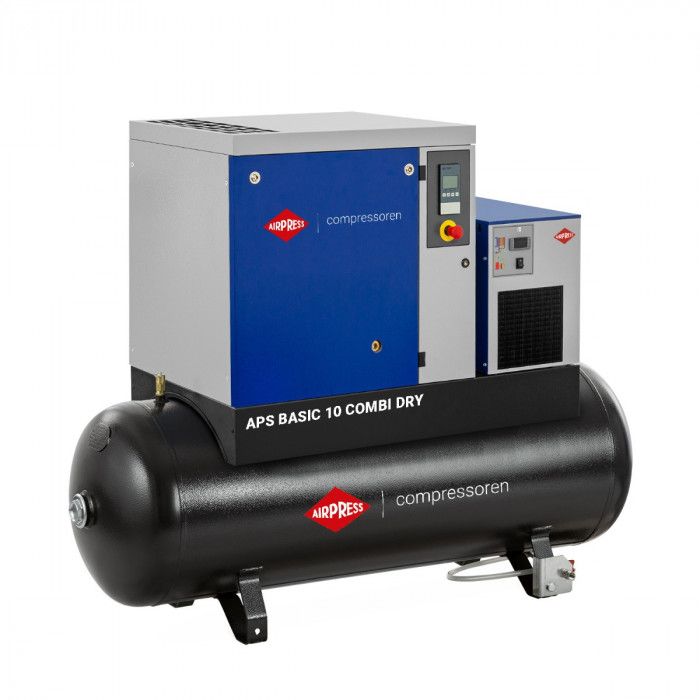

Screw compressor APS 10 Basic Combi Dry 10 bar 10 hp/7.5 kW 996 l/min 500 l
€7,274.70
Incl. Tax:
€7,274.70
Incl. Tax:
Incl. Tax:
Out of stock
SKU
364958
Product details
| SKU | 364958 |
|---|---|
| EAN 13 | 8712418347470 |
| Weight (netto) (kg) | 300 kg |
| Length (mm) | 1,935 mm1.935 m |
| Width (mm) | 620 mm6.2 dm |
| Height (mm) | 1,463 mm1.463 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE3 |
| Air-end | C55* |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 BASIC |
| Air Receiver | Yes |
| Capacity air receiver (l) | 500 |
|---|---|
| Galvanized tank | No |
| Dryer | Yes |
| Dryer voltage (V) | 230 |
| Refrigerant | R134a |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min) | 996 L/m1.66 L/h |
| Free air delivery (m3/h) | 59.76 m³/h2.767 L/m |
| Noise level dB (A) (0 m) | 66 |
| Noise level dB(A) (4 m) | 46 |
| Main air connection (") | 3/4 + 1/2 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
