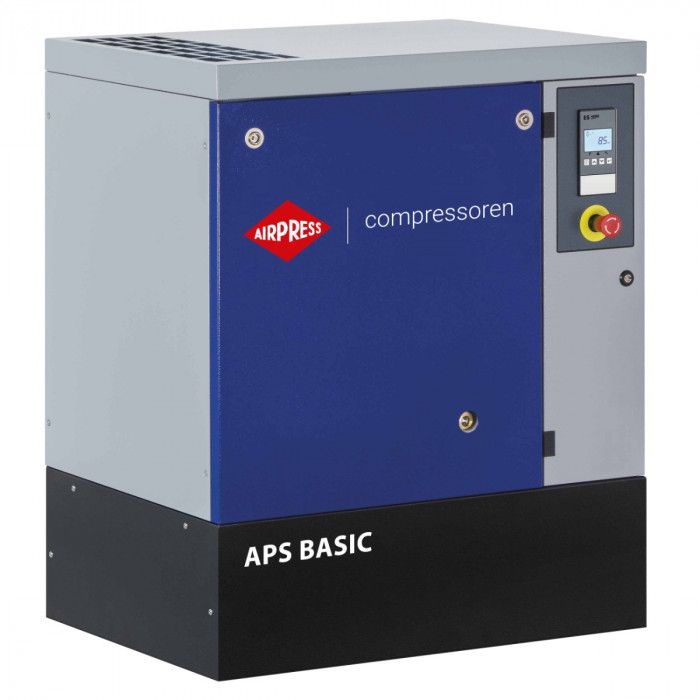

Screw Compressor APS 15 Basic 8 bar 15 hp 1620 l/min
€6,408.58
Incl. Tax:
€6,408.58
Incl. Tax:
Incl. Tax:
Out of stock
SKU
364809-8
Product details
| SKU | 364809-8 |
|---|---|
| EAN 13 | 8712418366327 |
| Weight (netto) (kg) | 185 kg |
| Length (mm) | 810 mm8.1 dm |
| Width (mm) | 650 mm6.5 dm |
| Height (mm) | 975 mm9.75 dm |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 15.0 HP / 11.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C55* |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 BASIC |
|---|---|
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 8 |
| Free air delivery (l/min) | 1,620 L/m2.7 L/h |
| Free air delivery (m3/h) | 97.2 m³/h1.62 m³/min |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
