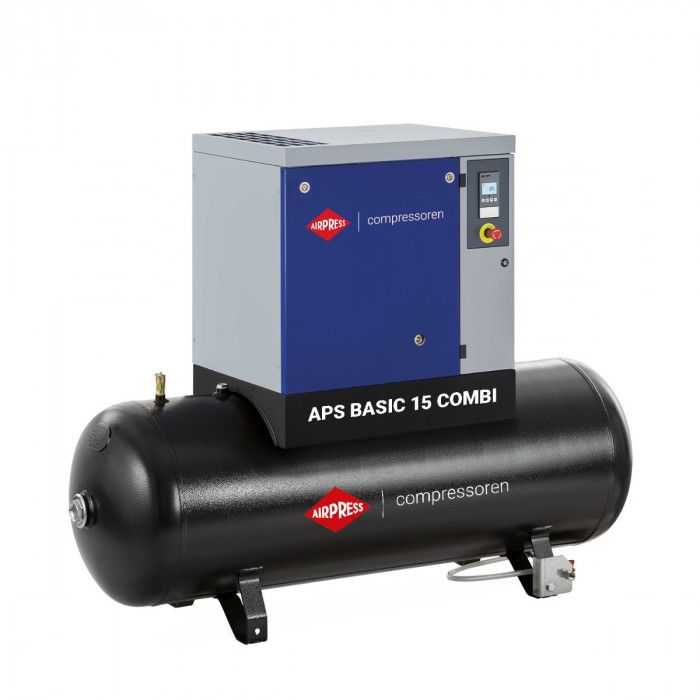

Screw Compressor APS 15 Basic Combi 10 bar 15 hp 1416 l/min 500 l
€7,032.80
Incl. Tax:
€7,032.80
Incl. Tax:
Incl. Tax:
Out of stock
SKU
364859
Product details
| SKU | 364859 |
|---|---|
| EAN 13 | 8712418347456 |
| Weight (netto) (kg) | 282 kg |
| Length (mm) | 1,395 mm1.395 m |
| Width (mm) | 620 mm6.2 dm |
| Height (mm) | 1,460 mm1.46 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 15.0 HP / 11.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C55* |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 BASIC |
| Air Receiver | Yes |
|---|---|
| Capacity air receiver (l) | 500 |
| Galvanized tank | No |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Free air delivery (l/min) | 1,416 L/m2.36 L/h |
| Free air delivery (m3/h) | 84.96 m³/h1.416 m³/min |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Main air connection (") | 1/2 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
