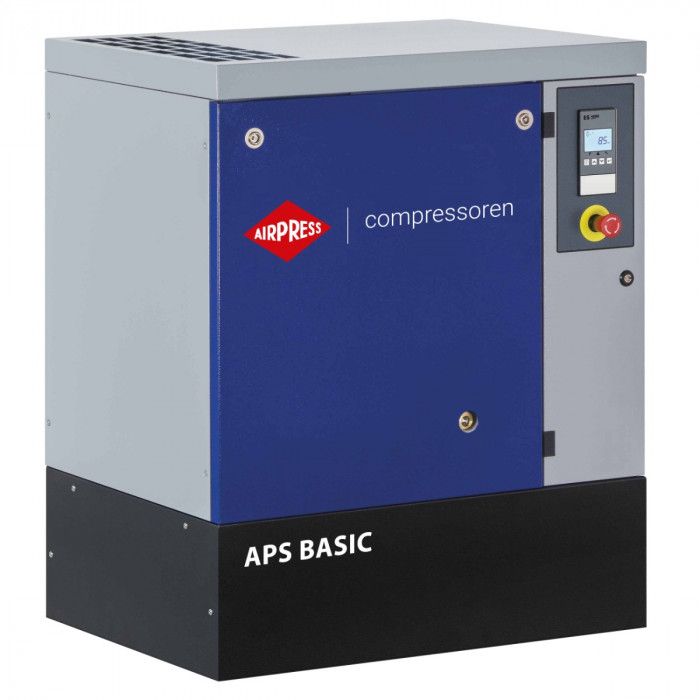

Screw Compressor APS 20 Basic 13 bar 20 hp 1332 l/min
Out of stock
SKU
364810-13
| Motor power (hp / kW) | 20.0 HP / 15.0 kW |
|---|---|
| Variable speed (IVR) | No |
| Air Receiver | No |
| Dryer | No |
| Maximum pressure (bar) | 13 |
| Free air delivery (l/min)* | 1,332 L/min22.2 L/s |
| Free air delivery (m3/h)* | 79.92 m³/h1.332 m³/min |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418366303 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 200 kg |
| Length (mm) | 810 mm8.1 dm |
| Width (mm) | 650 mm6.5 dm |
| Height (mm) | 975 mm9.75 dm |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 20.0 HP / 15.0 kW |
| Motor efficiency class | IE3 |
| Air-end | C55* |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 BASIC |
| Air Receiver | No |
|---|---|
| Galvanized tank | No |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 13 |
| Free air delivery (l/min)* | 1,332 L/min22.2 L/s |
| Free air delivery (m3/h)* | 79.92 m³/h1.332 m³/min |
| Noise level dB (A) (0 m) | 69 |
| Noise level dB(A) (4 m) | 49 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| SKU | 364810-13 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
