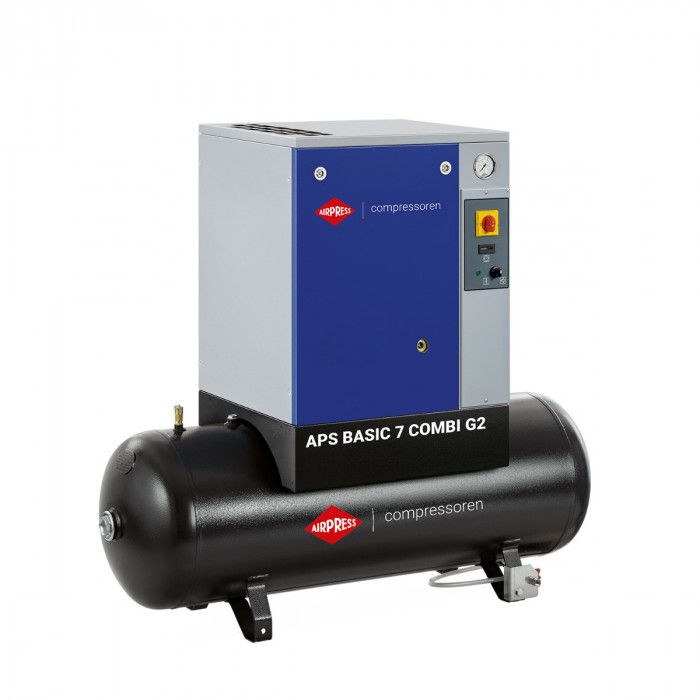

Screw Compressor APS 7 Basic Combi 10 bar 7.5 hp 690 l/min 200 l
€4,344.76
Incl. Tax:
€4,344.76
Incl. Tax:
Incl. Tax:
Out of stock
SKU
362907
Product details
| SKU | 362907 |
|---|---|
| EAN 13 | 8712418159103 |
| Weight (netto) (kg) | 185 kg |
| Length (mm) | 1,430 mm1.43 m |
| Width (mm) | 600 mm6 dm |
| Height (mm) | 1,260 mm1.26 m |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Motor efficiency class | IE3 |
| Air-end | C43 |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ON/OFF |
| Air Receiver | Yes |
| Capacity air receiver (l) | 200 |
|---|---|
| Galvanized tank | No |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
| Free air delivery (l/min) | 780 L/m1.3 L/h |
| Free air delivery (m3/h) | 41.4 m³/h1.917 L/m |
| Noise level dB (A) (0 m) | 66 |
| Noise level dB(A) (4 m) | 46 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Oil capacity (l) | 3.20 |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Autoregulation of idling | Yes |
