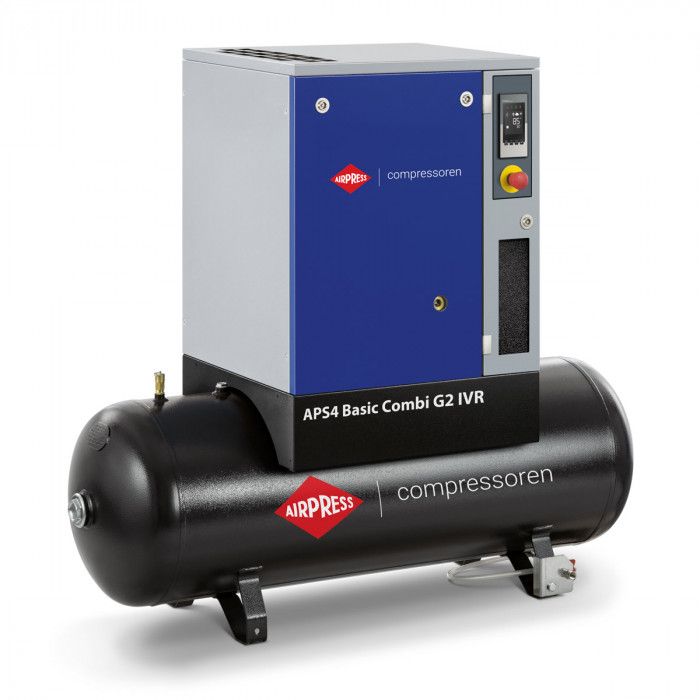

Screw compressor APS Basic 4 Combi G2 IVR 10 bar 4 HP / 3 kW 200 l
Out of stock
SKU
362904-IVR
| Motor power (hp / kW) | 4.0 HP / 3.0 kW |
|---|---|
| Variable speed (IVR) | Yes |
| Pump speed (rpm) | 1800 - 3750 |
| Air Receiver | No |
| Maximum pressure (bar) | 10 |
| Minimum free air delivery (l/min) | 138 L/min2.3 L/s |
| Minimum free air delivery (m3/h) | 8.28 m³/h2.3 dm³/s |
| Maximum free air delivery (l/min) | 360 L/min6 L/s |
| Maximum free air delivery (m3/h) | 21.6 m³/h6 dm³/s |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418429350 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Quantity in box (pcs.) | 1 |
| Weight (netto) (kg) | 170 kg |
| Length (mm) | 1,430 mm1.43 m |
| Width (mm) | 600 mm6 dm |
| Height (mm) | 1,285 mm1.285 m |
| Drive | V-belt driven |
| Start | Inverter |
| Motor power (hp / kW) | 4.0 HP / 3.0 kW |
| Motor efficiency class | IE3 |
| Variable speed (IVR) | Yes |
| Pump speed (rpm) | 1800 - 3750 |
| Control panel | ES 4000 CONNECT |
| Air Receiver | No |
| Galvanized tank | No |
|---|---|
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 10 |
| Minimum free air delivery (l/min) | 138 L/min2.3 L/s |
| Minimum free air delivery (m3/h) | 8.28 m³/h2.3 dm³/s |
| Maximum free air delivery (l/min) | 360 L/min6 L/s |
| Maximum free air delivery (m3/h) | 21.6 m³/h6 dm³/s |
| Noise level dB (A) (0 m) | 57 |
| Main air connection (") | 1/2 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| IP classification | IP55 |
| SKU | 362904-IVR |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
