Silent Compressor APZ 600-270 10 bar 5.5 hp/4 kW 465 l/min 270 l
Out of stock
The APZ 600-270 is a quiet, two-piston industrial compressor with a motor power of 5.5 HP (4 kW) and a free air delivery of 465 l/min, equipped with a large 270-litre tank. Designed for intensive work cycles, this model ensures efficiency, reliability, and low noise level, which makes it ideal for production plants and workshops.
Product details
| SKU | 34351-270 |
|---|---|
| EAN 13 | 8712418413779 |
| Blister | Yes |
| Weight (netto) (kg) | 248 kg |
| Gross weight (kg) | 300 kg |
| Length (mm) | 1,550 mm1.55 m |
| Width (mm) | 770 mm7.7 dm |
| Height (mm) | 1,530 mm1.53 m |
| Thickness (mm) | 0 mm |
| Drive | V-belt driven |
| Start | Direct |
| Motor type | AC |
| Motor power (hp / kW) | 5.5 hp / 4 kw |
| Motor efficiency class | IE1 |
| Pump Type | K28 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1290 |

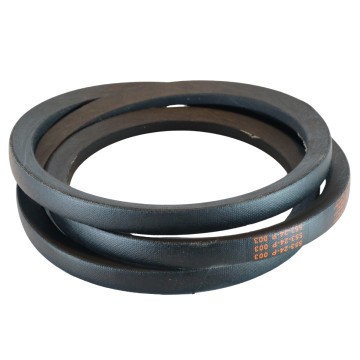

| Belt size | A66 |
| Flywheel diameter (mm) | 385 mm3.85 dm |
| Pulley diameter (mm) | 160 mm1.6 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 270 |
| Galvanized tank | No |
| Workload (labor/rest %) | 60/40 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 662 L/m1.103 L/h |
| Free air delivery (l/min) | 465 L/m2.79 kL/s |
| Free air delivery (m3/h) | 27.9 m³/h1.292 L/m |
| Free air delivery at 6 bar (l/min) | 0 L/m |
| Free air delivery at 7 bar (l/min) | 0 L/m |
| Free air delivery at 8 bar (l/min) | 0 L/m |
| Noise level dB (A) (0 m) | 68 |
| Noise level dB(A) (4 m) | 48 |
| Noise level dB(A) (7 m) | 43 |
| Sound volume reduction | Yes |
| Main air connection (") | 1/2 |
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | - |
| Ambient temperature (°C) | 5℃ - 45℃ |
| Oilfree | No |
| Oil capacity (l) | 1.80 |
| Ampere (A) | 7.8 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Cable length (m) | 1.5 m |
| IP classification | IP55 |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
Description
Silent two-piston compressor APZ 600-270
The APZ 600-270 is an efficient two-stage piston compressor, designed for professional industrial applications where stable operation, efficiency and low noise level are required. Equipped with a tank with a capacity of 270 liters and a power of 5.5 HP (4 kW), this 10-bar model guarantees reliability and quiet operation, even with long work cycles in difficult industrial conditions.
Key Technical Features
- Two-piston, two-stage compression mechanism: The K28 series pump ensures efficiency and stability of work, which translates into durability during intensive use.
- Acoustic insulation: Special acoustic foam reduces the operating noise level to 68 dB(A) at 0 metre distance, which allows for quiet operation near workstations.
- Thermostatic fan control system: Temperature sensors automatically turn on the cooling fan, ensuring optimal operating temperature and reducing energy consumption.
- Built-in heat exchanger: Stabilizes the temperature of compressed air, reducing condensation and extending the life of the device.
Applications
The APZ 600-270 compressor is an ideal choice for use in workshops, service centers and small production plants where efficiency and reliability are required. Thanks to a large 270 litre tank and a compact design, this model is perfect for places with limited space, ensuring a stable supply of compressed air in intensive work cycles.
Operational efficiency and savings
Thanks to the direct drive, the APZ 600-270 10 bar compressor minimizes energy losses, offering high efficiency and durability. Durable construction, advanced acoustic insulation and a thermostatic cooling system make this model ideal for users looking for reliable equipment with high performance and low operating costs.
