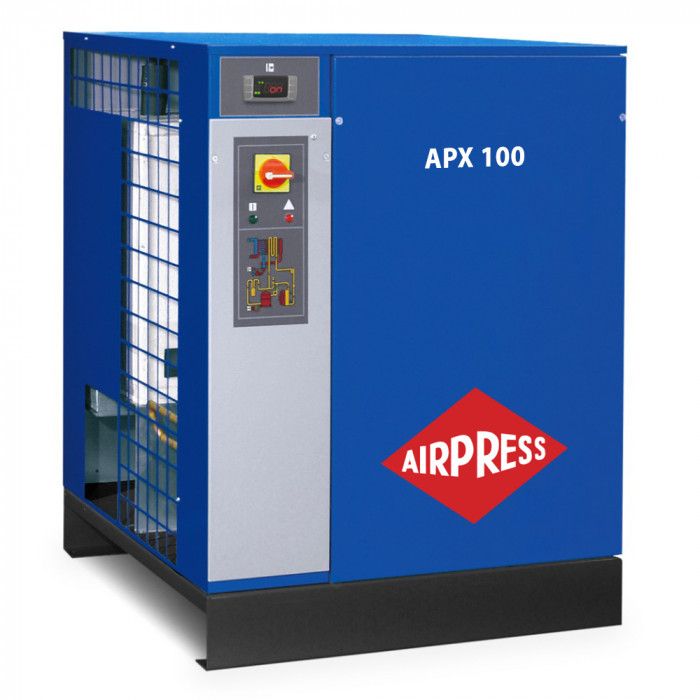

Compressed air dryer APX 100 2" 10000 l/min
€5,083.44
Incl. Tax:
€5,083.44
Incl. Tax:
Incl. Tax:
Out of stock
SKU
390100
Product details
| SKU | 390100 |
|---|---|
| EAN 13 | 8712418362817 |
| Blister | No |
| Weight (netto) (kg) | 145 kg |
| Length (mm) | 805 mm8.05 dm |
| Width (mm) | 1,070 mm1.07 m |
| Height (mm) | 962 mm9.62 dm |
| Type | APX |
| Control panel | Digital |
| Air flow at 7 bar (l/min) | 10000 |
| Air flow at 7 bar (m3/h) | 600 m³/h10 m³/min |
| Purity class - humidity (ISO 8573-1) | 4 |
|---|---|
| Connection type | Female |
| Air connection (") | 2 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| Power (kW) | 1.540 |
| Refrigerant | R410a |
| Maximum pressure (bar) | 14 |
| Pressure dew points (°C) | 4 (+/-1) |
| Max. inlet air temperature (°C) | 60 °C |
| Minimum ambient temperature (°C) | 5 |
| Maximum ambient temperature (°C) | 46 |
