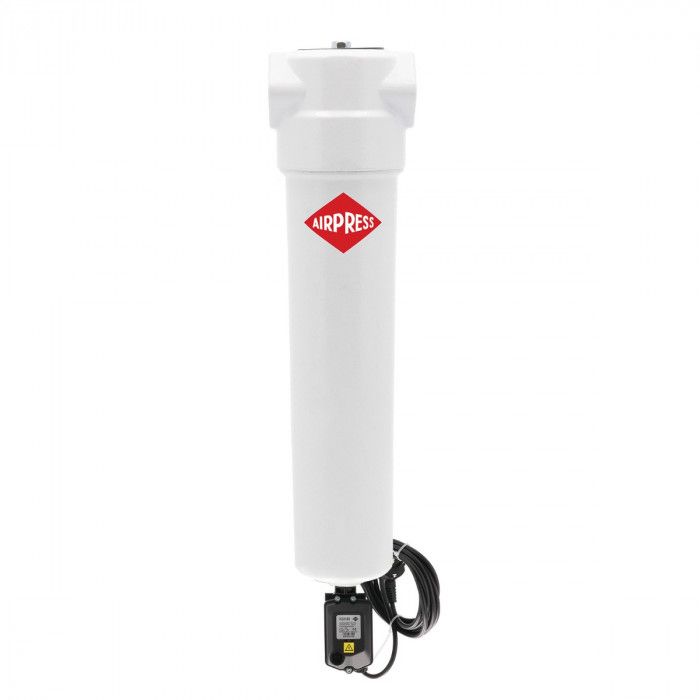

Compressed air filter P 1 1/2" F047 8500 l/min prefilter 3 micrometer
Out of stock
SKU
450160A-P
| Filter type | Prefilter |
|---|---|
| Filtration (µm) | 3 |
| Flow rate (l/min) | 8500 |
| Flow rate (m3/h) | 510 |
| EAN 13 | 8712418398328 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 3.32 kg |
| Gross weight (kg) | 3.78 kg |
| Length (mm) | 145 mm1.45 dm |
| Width (mm) | 630 mm6.3 dm |
| Height (mm) | 135 mm1.35 dm |
| Diameter (mm) | 125 |
| Series | P |
| Housing material | Aluminium |
| Element material | Acrylic fibers, cellulose |
| Filter type | Prefilter |
| Type condensation drain | Automatic |
| Replaceable cartridge | Yes |
| Distance sensor | No |
|---|---|
| Pressure reducer | No |
| Filtration (µm) | 3 |
| Air connection (") | 1 1/2 |
| Working pressure (bar) | 0 - 16 |
| Maximum pressure (bar) | 16 |
| Flow rate (l/min) | 8500 |
| Flow rate (m3/h) | 510 |
| Minimum ambient temperature (°C) | 1.5 |
| Maximum ambient temperature (°C) | 65 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| Cable length (m) | 2.9 m |
| SKU | 450160A-P |
