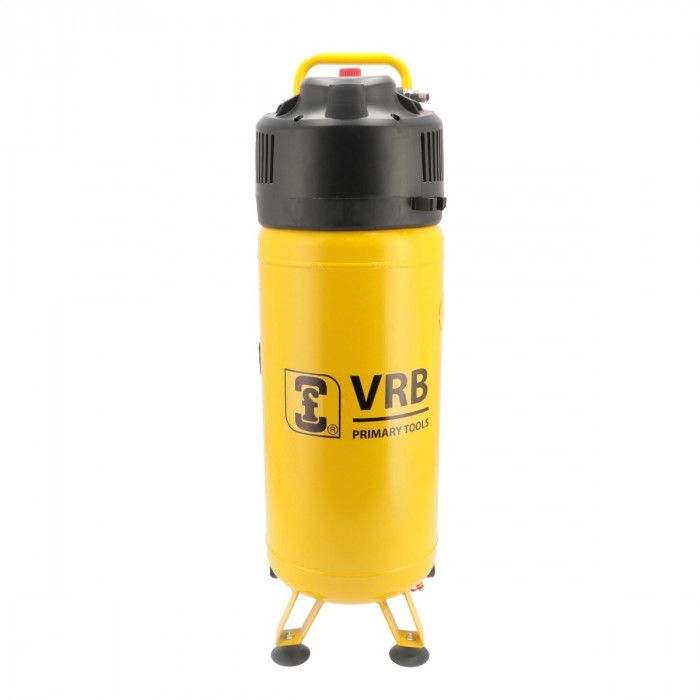

Compressor 8LCV50-2.0 VRB 10 bar 2 pk 220 l/min 50 l
Out of stock
SKU
8LCV50-2
| Motor power (hp / kW) | 2.0 HP / 1.5 kW |
|---|---|
| Capacity air receiver (l) | 50 |
| Maximum pressure (bar) | 10 |
| Intake capacity (l/min) | 220 L/min3.667 L/s |
| Free air delivery (l/min)* | 166 L/min2.767 L/s |
| Noise level dB (A) (0 m) | 97 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 8712418394924 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 23 kg |
| Length (mm) | 330 mm3.3 dm |
| Width (mm) | 340 mm3.4 dm |
| Height (mm) | 1,000 mm1 m |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 2.0 HP / 1.5 kW |
| Cylinders | 1 |
| Stages | 1 |
| Pump speed (rpm) | 4000 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 50 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 10 |
| Minimum working pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 220 L/min3.667 L/s |
| Free air delivery (l/min)* | 166 L/min2.767 L/s |
| Free air delivery (m3/h)* | 9.96 m³/h2.767 dm³/s |
| Noise level dB (A) (0 m) | 97 |
| Noise level dB(A) (4 m) | 77 |
| Noise level dB(A) (7 m) | 72 |
| Sound volume reduction | No |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Oilfree | Yes |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
| SKU | 8LCV50-2 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
