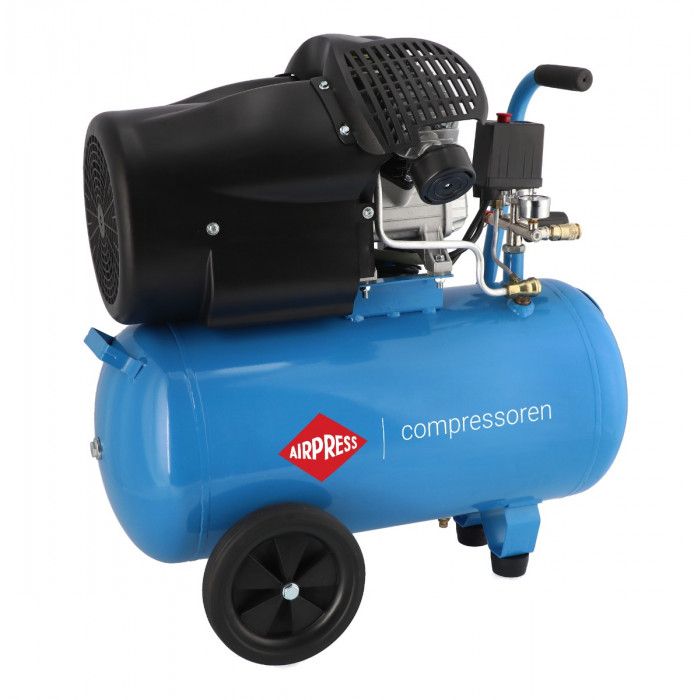

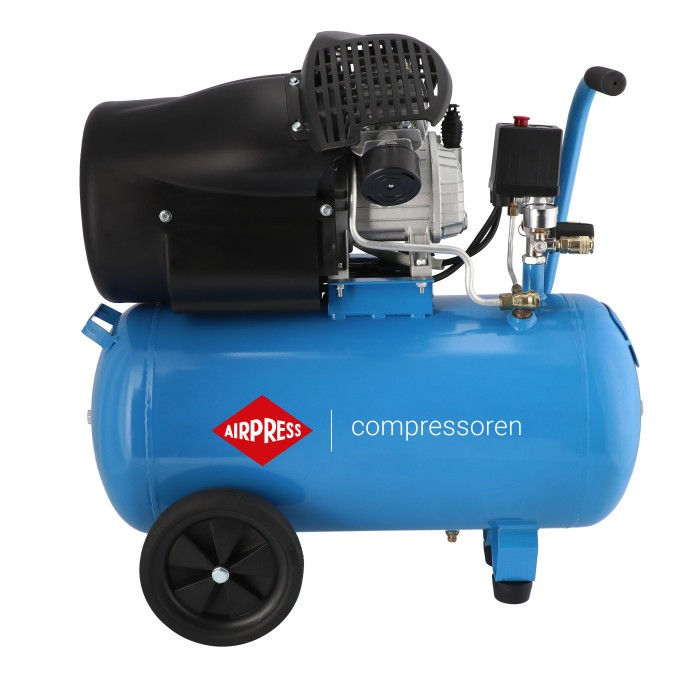

Compressor HL 425-50 8 bar 3 hp 260 l/min 50 l
Out of stock
SKU
36843
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
|---|---|
| Capacity air receiver (l) | 50 |
| Maximum pressure (bar) | 8 |
| Intake capacity (l/min) | 392 L/min6.533 L/s |
| Free air delivery (l/min)* | 260 L/min4.333 L/s |
| Noise level dB (A) (0 m) | 94 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 8712418188530 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 43.5 kg |
| Gross weight (kg) | 44 kg |
| Length (mm) | 750 mm7.5 dm |
| Width (mm) | 330 mm3.3 dm |
| Height (mm) | 660 mm6.6 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 2850 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 50 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 8 |
| Minimum working pressure (bar) | 6 bar |
|---|---|
| Intake capacity (l/min) | 392 L/min6.533 L/s |
| Free air delivery (l/min)* | 260 L/min4.333 L/s |
| Free air delivery (m3/h)* | 15.6 m³/h4.333 dm³/s |
| Noise level dB (A) (0 m) | 94 |
| Noise level dB(A) (4 m) | 74 |
| Noise level dB(A) (7 m) | 69 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
| SKU | 36843 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
