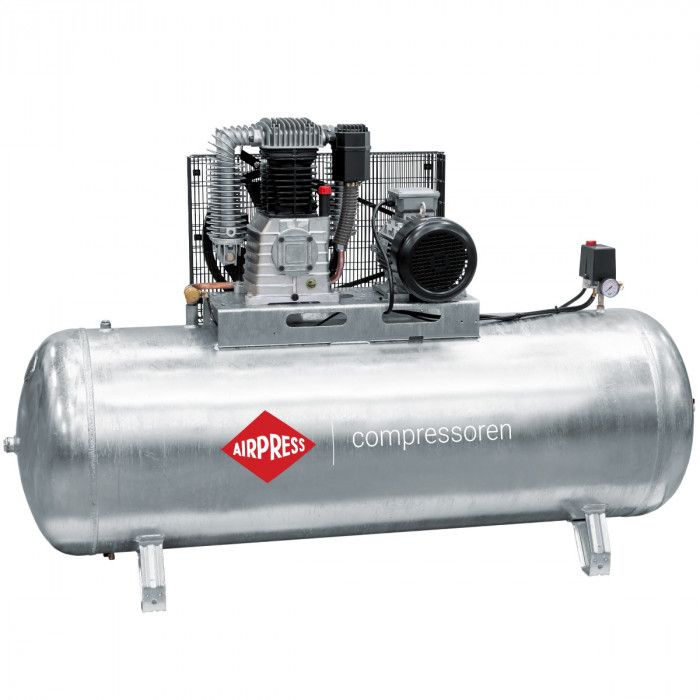

Compressor G 1000-500 Pro 11 bar 7.5 hp 698 l/min 500 l galvanized
Out of stock
SKU
369569
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
|---|---|
| Capacity air receiver (l) | 500 |
| Maximum pressure (bar) | 11 |
| Intake capacity (l/min) | 872 L/min14.533 L/s |
| Free air delivery (l/min)* | 610.4 L/min10.173 L/s |
| Noise level dB (A) (0 m) | 77 |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| EAN 13 | 8712418332544 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 205 kg |
| Length (mm) | 1,930 mm1.93 m |
| Width (mm) | 600 mm6 dm |
| Height (mm) | 1,280 mm1.28 m |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 7.5 HP / 5.5 kW |
| Pump Type | K30 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1200 |
| Flywheel diameter (mm) | 400 mm4 dm |
| Pulley diameter (mm) | 140 mm1.4 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 500 |
| Galvanized tank | Yes |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 11 |
|---|---|
| Minimum working pressure (bar) | 9 bar |
| Intake capacity (l/min) | 872 L/min14.533 L/s |
| Free air delivery (l/min)* | 610.4 L/min10.173 L/s |
| Free air delivery (m3/h)* | 39.9 m³/h11.083 dm³/s |
| Noise level dB (A) (0 m) | 77 |
| Noise level dB(A) (4 m) | 57 |
| Noise level dB(A) (7 m) | 52 |
| Sound volume reduction | No |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | - |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
| SKU | 369569 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
