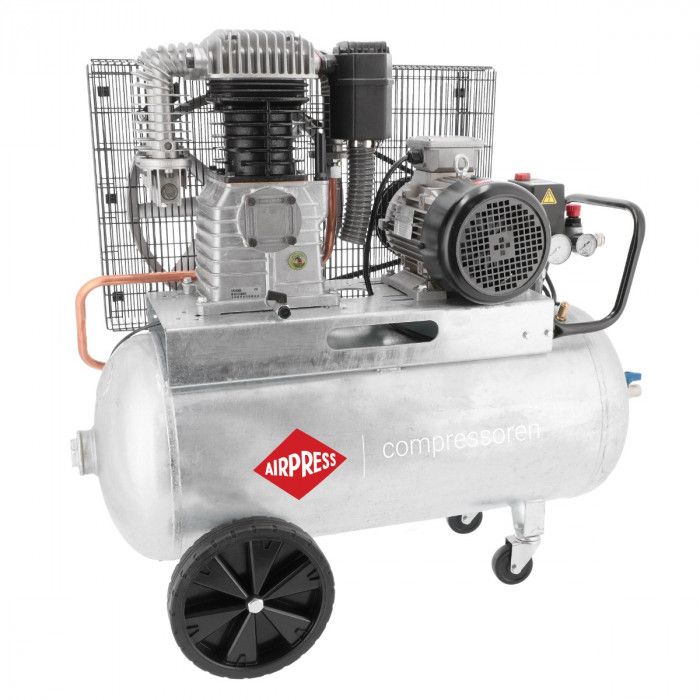

Compressor G 700-90 Pro 11 bar 5.5 hp/4 kW 476 l/min 90 l 400V
Garantie 3 ans
Cuve galvanisée - garantie 10 ans
€1,943.46
Incl. Tax:
€1,943.46
Incl. Tax:
Incl. Tax:
Out of stock
SKU
369640
Product details
| SKU | 369640 |
|---|---|
| EAN 13 | 8712418380958 |
| Weight (netto) (kg) | 90 kg |
| Length (mm) | 980 mm9.8 dm |
| Width (mm) | 480 mm4.8 dm |
| Height (mm) | 960 mm9.6 dm |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 5.5 HP / 4.0 kW |
| Pump Type | K28 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 1290 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 90 |
| Galvanized tank | Yes |
| Workload (labor/rest %) | 50/50 |
| Maximum pressure (bar) | 11 |
| Cut-in pressure (bar) | 9 bar |
|---|---|
| Intake capacity (l/min) | 662 L/m1.103 L/h |
| Free air delivery (l/min) | 476 L/m2.856 kL/s |
| Free air delivery (m3/h) | 28.56 m³/h1.322 L/m |
| Noise level dB (A) (0 m) | 75 |
| Noise level dB(A) (4 m) | 55 |
| Noise level dB(A) (7 m) | 51 |
| Sound volume reduction | No |
| Connection type | Universal + Euro |
| Main air connection (") | 1/2 |
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | Yes |
| Filter with reducer | No |
