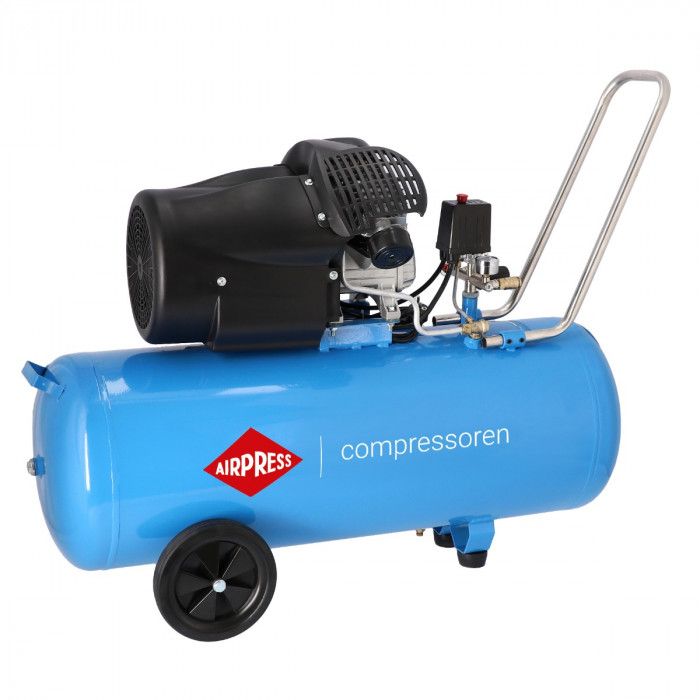

Compressor HL 425-100V 8 bar 3 hp/2.2 kW 260 l/min 100 l
€434.24
Incl. Tax:
€434.24
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36834
Product details
| SKU | 36834 |
|---|---|
| EAN 13 | 8712418298994 |
| Weight (netto) (kg) | 57 kg |
| Gross weight (kg) | 56.5 kg |
| Length (mm) | 1,090 mm1.09 m |
| Width (mm) | 430 mm4.3 dm |
| Height (mm) | 830 mm8.3 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 2850 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 100 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 8 |
| Cut-in pressure (bar) | 6 bar |
|---|---|
| Intake capacity (l/min) | 392 L/m2.352 kL/s |
| Free air delivery (l/min) | 260 L/m1.56 kL/s |
| Free air delivery (m3/h) | 15.6 m³/h4.333 dm³/s |
| Noise level dB (A) (0 m) | 94 |
| Noise level dB(A) (4 m) | 74 |
| Noise level dB(A) (7 m) | 69 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/4 |
| Number of couplings air connections | 2 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
Recommended
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Documents & Manuals
Download PDF
Spare parts list 36834
Manual EN/FR/NL/DE/PL/ES/UA/CZ/LT/LV/EE/RO/SK/HU 36546, 36744-E, 36839-1, 36856, 36832, 36852, 36833, 36843, 36888, 36834, 36826, 36827, 36828, 36844-E, 36891, 36871, 36872
13.12.2024 - BLUE SERIES PISTON COMPRESSORS OIL LUBRICATED_2024 - WEB.pdf
36834 - SPARE PARTS LIST 2024.pdf
