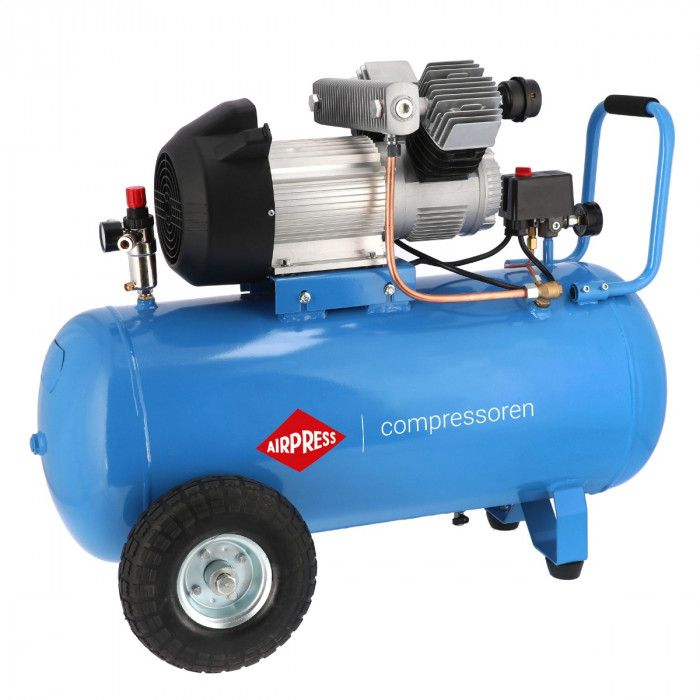

Compressor LM 90-350 10 bar 3 hp 244 l/min 90 l
€836.62
Incl. Tax:
€836.62
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36828
Product details
| SKU | 36828 |
|---|---|
| EAN 13 | 8712418343212 |
| Weight (netto) (kg) | 63 kg |
| Length (mm) | 980 mm9.8 dm |
| Width (mm) | 510 mm5.1 dm |
| Height (mm) | 760 mm7.6 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Cylinders | 2 |
| Stages | 1 |
| Pump speed (rpm) | 1450 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 90 |
| Galvanized tank | No |
| Workload (labor/rest %) | 40/60 |
| Maximum pressure (bar) | 10 |
| Cut-in pressure (bar) | 8 bar |
|---|---|
| Intake capacity (l/min) | 328 L/m1.968 kL/s |
| Free air delivery (l/min) | 245 L/m1.47 kL/s |
| Free air delivery (m3/h) | 14.7 m³/h4.083 dm³/s |
| Noise level dB (A) (0 m) | 96 |
| Noise level dB(A) (4 m) | 76 |
| Noise level dB(A) (7 m) | 71 |
| Sound volume reduction | No |
| Connection type | 2 Universal |
| Main air connection (") | 1/4 |
| Number of reducable couplings air connections | 2 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
Recommended
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Documents & Manuals
Download PDF
Spare parts list 36828
Manual EN/FR/NL/DE/PL/ES/UA/CZ/LT/LV/EE/RO/SK/HU 36546, 36744-E, 36839-1, 36856, 36832, 36852, 36833, 36843, 36888, 36834, 36826, 36827, 36828, 36844-E, 36891, 36871, 36872
13.12.2024 - BLUE SERIES PISTON COMPRESSORS OIL LUBRICATED_2024 - WEB.pdf
36828 - SPARE PARTS LIST 2024.pdf
