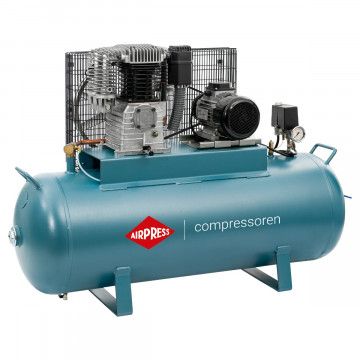

Compressor K 100-450 14 bar 3 hp 270 l/min 100 l
€1,810.12
Incl. Tax:
€1,810.12
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36512-N
Product details
| SKU | 36512-N |
|---|---|
| EAN 13 | 8712418305333 |
| Weight (netto) (kg) | 101.5 kg |
| Length (mm) | 1,150 mm1.15 m |
| Width (mm) | 420 mm4.2 dm |
| Height (mm) | 865 mm8.65 dm |
| Drive | V-belt driven |
| Start | Direct |
| Motor power (hp / kW) | 3.0 HP / 2.2 kW |
| Pump Type | K25 |
| Cylinders | 2 |
| Stages | 2 |
| Pump speed (rpm) | 740 |
| Belt size | A57 (1450) |
| Flywheel diameter (mm) | 385 mm3.85 dm |
| Pulley diameter (mm) | 100 mm1 dm |
| Air Receiver | Yes |
| Capacity air receiver (l) | 100 |
| Galvanized tank | No |
| Workload (labor/rest %) | 60/40 |
|---|---|
| Maximum pressure (bar) | 14 |
| Cut-in pressure (bar) | 12 bar1.2 MPa |
| Intake capacity (l/min) | 450 L/m2.7 kL/s |
| Free air delivery (l/min) | 238 L/m1.428 kL/s |
| Free air delivery (m3/h) | 14.28 m³/h3.967 dm³/s |
| Noise level dB (A) (0 m) | 97 |
| Noise level dB(A) (4 m) | 77 |
| Noise level dB(A) (7 m) | 72 |
| Sound volume reduction | No |
| Main air connection (") | 1/2 |
| Number of reducable couplings air connections | - |
| Oilfree | No |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
| After cooler | Yes |
| Intercooler | Yes |
| Wheels | No |
| Filter with reducer | No |
