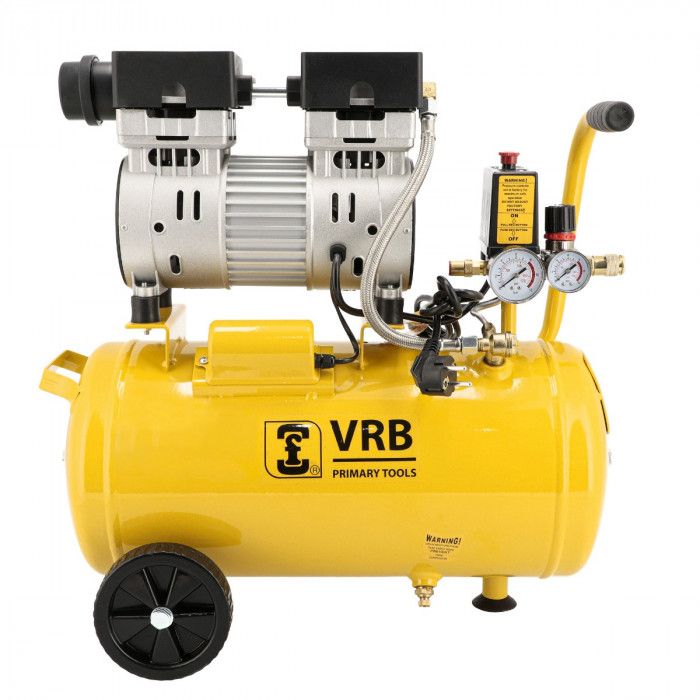

Oilfree Compressor LCS 24-1.0 VRB 8 bar 1.0 hp/0.75kW 88 l/min 24 l
Out of stock
SKU
8LCS24-1.0
| Motor power (hp / kW) | 1 HP / 0.75 kW |
|---|---|
| Capacity air receiver (l) | 24 |
| Maximum pressure (bar) | 8 |
| Intake capacity (l/min) | 126 L/min2.1 L/s |
| Free air delivery (l/min)* | 88 L/min1.467 L/s |
| Noise level dB (A) (0 m) | 78 |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| EAN 13 | 8712418401172 |
|---|---|
| Manufacturer | Airpress Polska Sp. z o.o. |
| Weight (netto) (kg) | 22 kg |
| Length (mm) | 560 mm5.6 dm |
| Width (mm) | 255 mm2.55 dm |
| Height (mm) | 485 mm4.85 dm |
| Start | Direct |
| Motor power (hp / kW) | 1 HP / 0.75 kW |
| Pump speed (rpm) | 1400 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 24 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 8 |
| Minimum working pressure (bar) | 5 bar |
| Intake capacity (l/min) | 126 L/min2.1 L/s |
|---|---|
| Free air delivery (l/min)* | 88 L/min1.467 L/s |
| Noise level dB (A) (0 m) | 78 |
| Noise level dB(A) (4 m) | 58 |
| Noise level dB(A) (7 m) | 53 |
| Sound volume reduction | Yes |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Oilfree | Yes |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
| SKU | 8LCS24-1.0 |
* The output efficiency (l/min) is an estimated value, dependent on factors such as the intake air pressure, temperature, and humidity.
