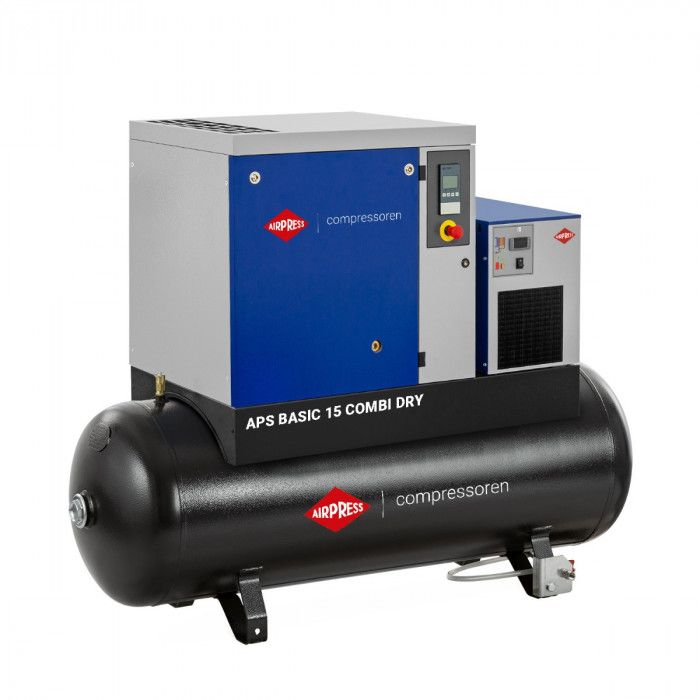

Screw Compressor APS 15 Basic Combi Dry 13 bar 15 hp/11 kW 1152 l/min 500 l

Out of stock

SKU 364959-13

Motor power (hp / kW)	15.0 HP / 11.0 kW
Variable speed (IVR)	No
Air Receiver	Yes
Dryer	Yes
Maximum pressure (bar)	13
Free air delivery (l/min)*	1,152 L/min19.2 L/s
Free air delivery (m3/h)*	69.12 m³/h1.152 m³/min
Voltage (V)	400 V / 50 Hz / 3 Ph

Panel ES4000 BASIC

EAN 13	8712418366785
Manufacturer	Airpress Polska Sp. z o.o.
Weight (netto) (kg)	315 kg
Length (mm)	1,935 mm1.935 m
Width (mm)	620 mm6.2 dm
Height (mm)	1,463 mm1.463 m
Drive	V-belt driven
Start	Y-∆
Motor type	AC
Motor power (hp / kW)	15.0 HP / 11.0 kW
Motor efficiency class	IE3
Air-end	C55*
Stages	1
Variable speed (IVR)	No
Control panel	ES 4000 BASIC
Air Receiver	Yes

Capacity air receiver (l)	500
Galvanized tank	No
Dryer	Yes
Dryer voltage (V)	230
Refrigerant	R134a
Workload (labor/rest %)	100/0
Maximum pressure (bar)	13
Free air delivery (l/min)*	1,152 L/min19.2 L/s
Free air delivery (m3/h)*	69.12 m³/h1.152 m³/min
Noise level dB (A) (0 m)	68
Noise level dB(A) (4 m)	48
Main air connection (")	3/4
Oilfree	No
Plug type	EU
Voltage (V)	400 V / 50 Hz / 3 Ph
SKU	364959-13
