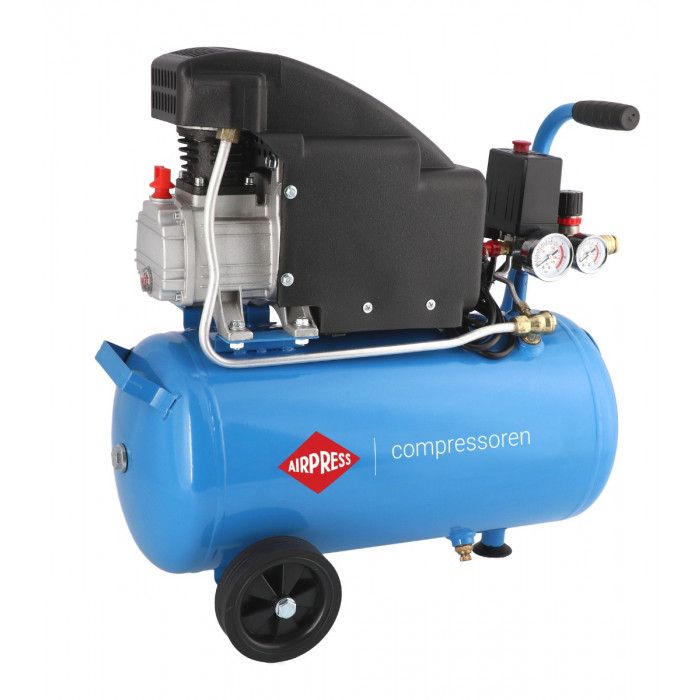

Compressor HL 150-24 8 bar 1.5 hp 120 l/min 24 l
€165.60
Incl. Tax:
€165.60
Incl. Tax:
Incl. Tax:
Out of stock
SKU
36744-E
Product details
| SKU | 36744-E |
|---|---|
| EAN 13 | 8712418287660 |
| Weight (netto) (kg) | 23 kg |
| Gross weight (kg) | 23.5 kg |
| Length (mm) | 580 mm5.8 dm |
| Width (mm) | 255 mm2.55 dm |
| Height (mm) | 580 mm5.8 dm |
| Drive | Direct driven 1:1 |
| Start | Direct |
| Motor power (hp / kW) | 1.5 HP / 1.1 kW |
| Cylinders | 1 |
| Stages | 1 |
| Pump speed (rpm) | 2850 |
| Air Receiver | Yes |
| Capacity air receiver (l) | 24 |
| Galvanized tank | No |
| Workload (labor/rest %) | 30/70 |
| Maximum pressure (bar) | 8 |
| Cut-in pressure (bar) | 6 bar |
|---|---|
| Intake capacity (l/min) | 150 L/m54 m³/min |
| Free air delivery (l/min) | 120 L/m43.2 m³/min |
| Free air delivery (m3/h) | 7.2 m³/h2 dm³/s |
| Noise level dB (A) (0 m) | 93 |
| Noise level dB(A) (4 m) | 73 |
| Noise level dB(A) (7 m) | 68 |
| Sound volume reduction | No |
| Connection type | Universal |
| Main air connection (") | 1/4 |
| Number of couplings air connections | 1 |
| Number of reducable couplings air connections | 1 |
| Oilfree | No |
| Voltage (V) | 230 V / 50 Hz / 1 Ph |
| After cooler | No |
| Intercooler | No |
| Wheels | Yes |
| Filter with reducer | No |
Recommended
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Documents & Manuals
Download PDF
Manual EN/FR/NL/DE/PL/ES/UA/CZ/LT/LV/EE/RO/SK/HU 36546, 36744-E, 36839-1, 36856, 36832, 36852, 36833, 36843, 36888, 36834, 36826, 36827, 36828, 36844-E, 36891, 36871, 36872
Spare parts list and drawing for 36744-E
13.12.2024 - BLUE SERIES PISTON COMPRESSORS OIL LUBRICATED_2024 - WEB.pdf
36744 - E - SPARE PARTS LIST 2024.pdf
