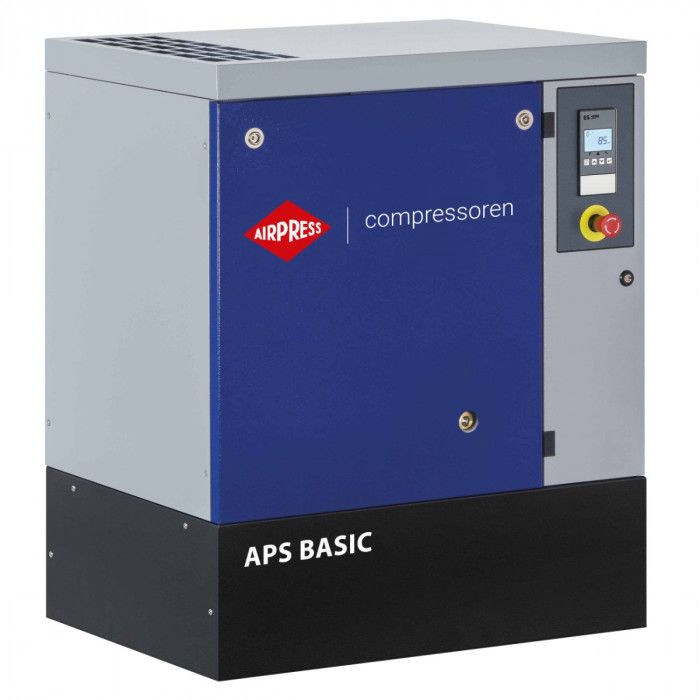

Screw Compressor APS 10 Basic 13 bar 10 hp 780 l/min
€6,045.14
Incl. Tax:
€6,045.14
Incl. Tax:
Incl. Tax:
Out of stock
SKU
364808-13
Product details
| SKU | 364808-13 |
|---|---|
| EAN 13 | 8712418366396 |
| Weight (netto) (kg) | 170 kg |
| Length (mm) | 850 mm8.5 dm |
| Width (mm) | 720 mm7.2 dm |
| Height (mm) | 980 mm9.8 dm |
| Drive | V-belt driven |
| Start | Y-∆ |
| Motor type | AC |
| Motor power (hp / kW) | 10.0 HP / 7.5 kW |
| Motor efficiency class | IE3 |
| Air-end | C55* |
| Stages | 1 |
| Variable speed (IVR) | No |
| Control panel | ES 4000 BASIC |
|---|---|
| Air Receiver | No |
| Galvanized tank | No |
| Dryer | No |
| Workload (labor/rest %) | 100/0 |
| Maximum pressure (bar) | 13 |
| Free air delivery (l/min) | 780 L/m1.3 L/h |
| Free air delivery (m3/h) | 46.8 m³/h2.167 L/m |
| Noise level dB (A) (0 m) | 66 |
| Noise level dB(A) (4 m) | 46 |
| Main air connection (") | 3/4 |
| Oilfree | No |
| Plug type | EU |
| Voltage (V) | 400 V / 50 Hz / 3 Ph |
